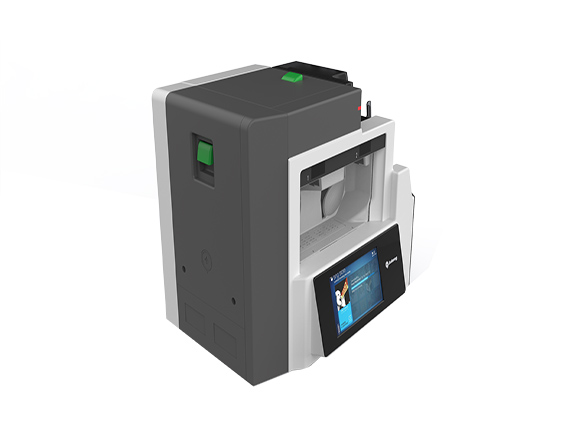

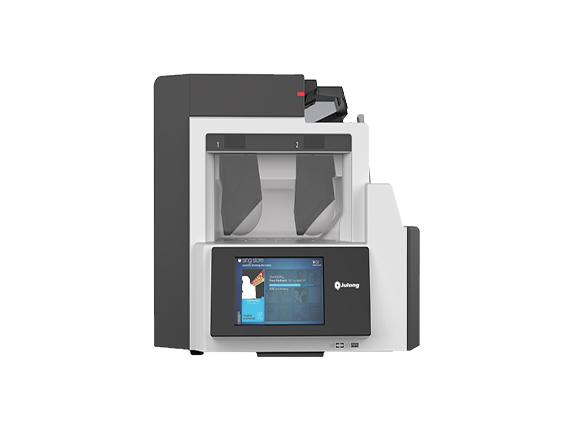

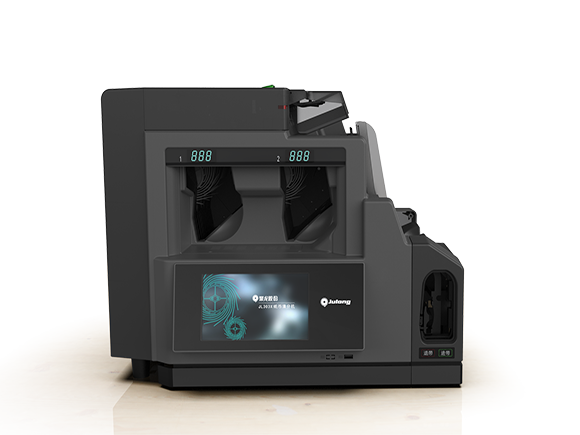

JL3100 Series Banknote Fitness Sorting and Binding Machine

Thanks to its innovative design and advanced fitness sorting feature, JL3100 provides accurate sorting with high performance and intuitive in a compact device.

After years of market research and analysis, JL3100 has been carefully designed, to ensure optimal operational ergonomics and environment for the user. The design is carried out based on the precise positioning of the product appearance and is equipped with an automatic dust proof door, which is more suitable for a safe and comfortable user working position.

Highlights

  • Economically and Environmentally Designed
  • Intuitive User Interface
  • Efficiency and Productivity Improvement

Technical Specifications (Please select a specification to view more details)

Hopper:1000 notes Stacker:200 notes*2
Reject Stacker:100 notes

CIS UV MG IR

1200 notes/min
Binding: 12binds/min

Width:53-85mm, Length:115-180mm

9-inch touch display

RJ45 RS232 USB2.0

220V-240V 50/60Hz

495*396*391mm(JL3100)
542*396*413mm(JL3100B)

32kg(JL3100)
35kg(JL3100B)

CQC ROHS CE

Additional Currencies, Remote Display, Integral Printer,
Clearance Program, Serial Number Printing

CNY EUR INR SAR AED BUK GHC TZS UZB KHR KZT SKR PKR Multi-Currencies Capabilities up to 100 Currencies
